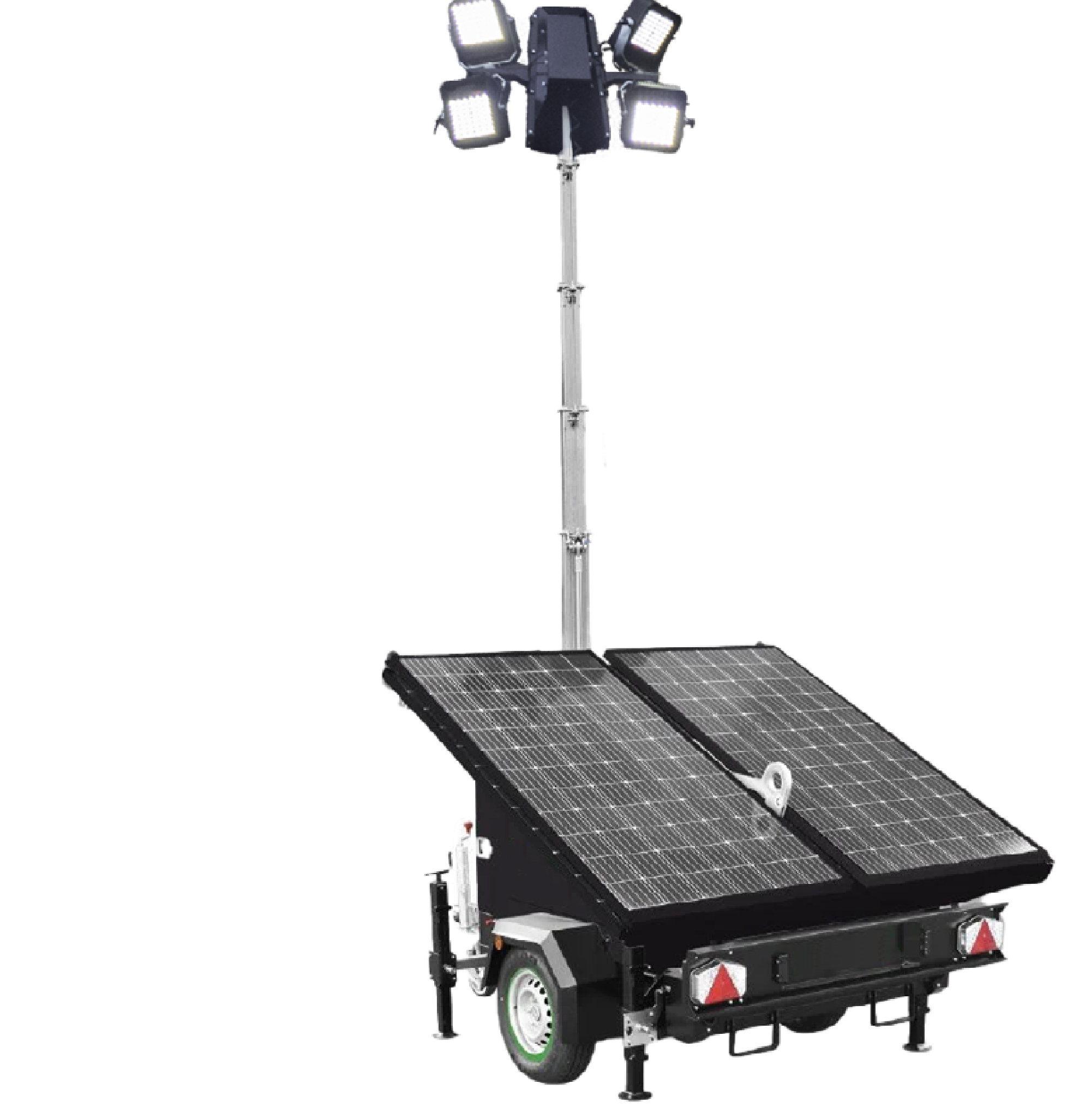

Powerful, high performance portable lighting tower
The Mobile VMS Innovative Solar Lighting Tower is a powerful high performance lighting tower that is portable, cost effective and offers a great return on investment.
It is visually as bright, effective and compact as conventional diesel towers, without the associated fuel and labour costs. It provides the green credentials the industry is striving for.
Features:
Environmentally friendly
No fuel, noise or pollution
1440 watt
Photovoltaic solar panels
Robust
To vandalism
Immediate coverage
2000 sq ft of instant light
Multi-directional
Adjusttable and tiltable floodlights
GPS
GPS monitoring
Multiple sensors
Capable of mounting multiple communication sensors
AMOSS System
Automatically lowers mast if moved
Technical specifications
Dimensions & Weight
| Dimensions min (mm) LxWxH | 3360 x 2138 x 2522 |
| Dimensions max (mm) LxWxH | 3360 X 4150 X 8500 |
| Weight (kg) | 1500 |
Floodlights
| Type | LED |
| Power (each) | 60W |
| IP Level | 65 |
| Options | Timer |
| Illuminated area (sq m) | 2000 |
Mast
| Lifting method | Hydraulic |
| Maximum height (m) | 8.5m |
| Maximum wind speed (km/h) | 80 km/h |
| Rotation | 340 degrees |
| Illuminated area (sq m) | 2000 |
Batteries
| Type | AGM |
| Batteries number | 8 |
| Power battery pack | 24 Vdc 800 Ah |
| Expected battery cycle | 500 |
Solar panel
| Power (each) | 4 x 360 W |
| Type | Victron |
| Solar panel deployment | Manual |
| Solar charge control | MPPT 150/60 |
